| Product Attribute | Attribute Value |
|---|---|
| Air Flow | 85 CFM (2408 L/Min.) |
| Alternate Mfr Part Number | OD1225-24HSS |
| Approximate Thickness | 1 In. (26 mm) |
| Bearing Type | Sleeve |
| Depth | 0.079" (2mm) |
| Dimensions | 4.724 x 4.724 x 0.984 In. (120 x 120 x 25 mm) |
| Fan Type | DC |
| Height | 4.724" (120mm) |
| Maximum Current | 240 |
| Noise Level | 39 dB |
| Power Dissipation | 5.8 |
| Power Rating | 5.8 W |
| Primary Type | Fan |
| Shop By | Factory Choice |
| Size, Approximate | 4.7 x 4.7 In. (120 x 120 mm) |
| Special Features | Brushless DC, Auto Restart, Polarity Protected Motor |
| Standards | UL, cUL, TUV |
| UPC Code | 5056112061496 |
| Voltage Rating | 24 VDC |
| Warranty | 3 Year Warranty |
Overview

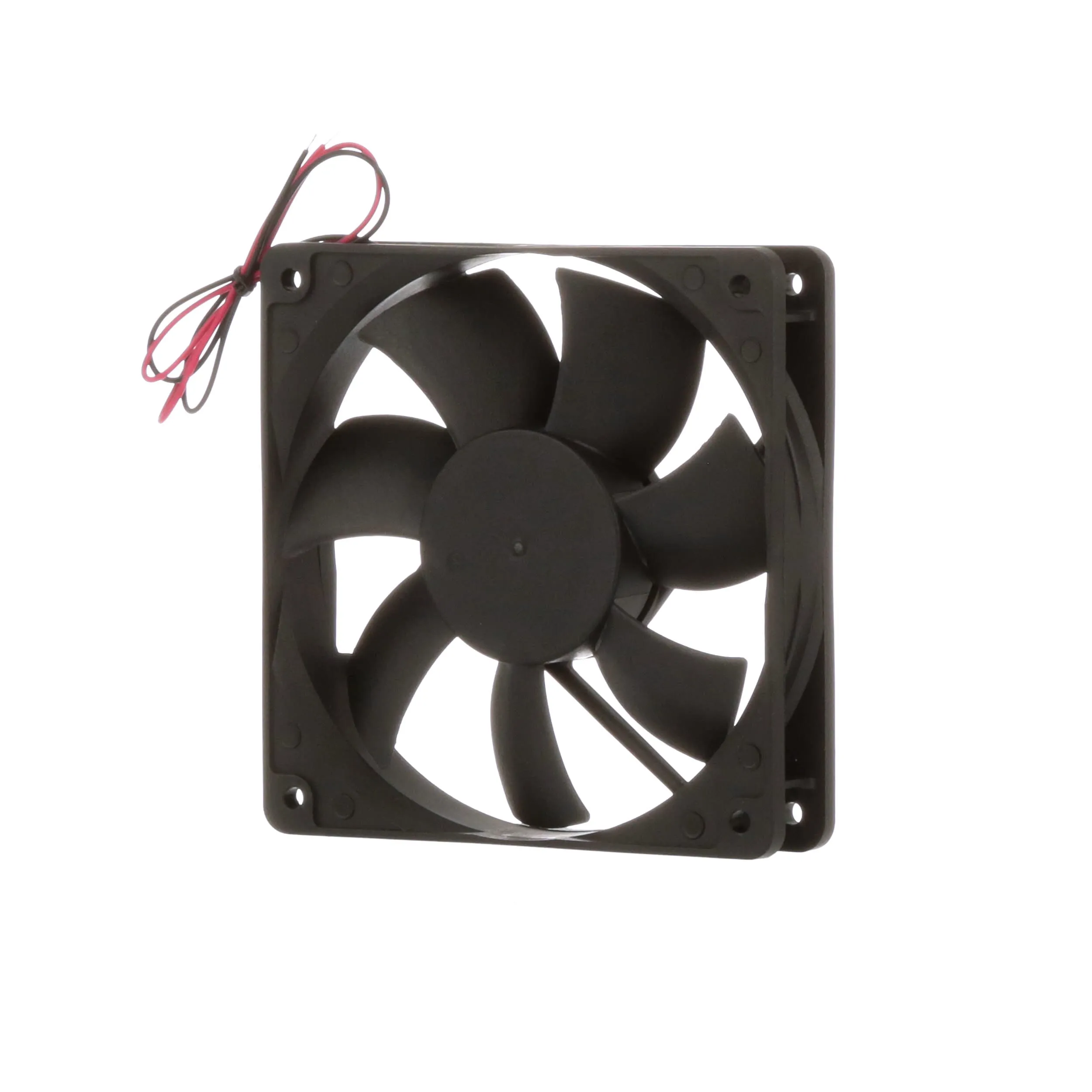

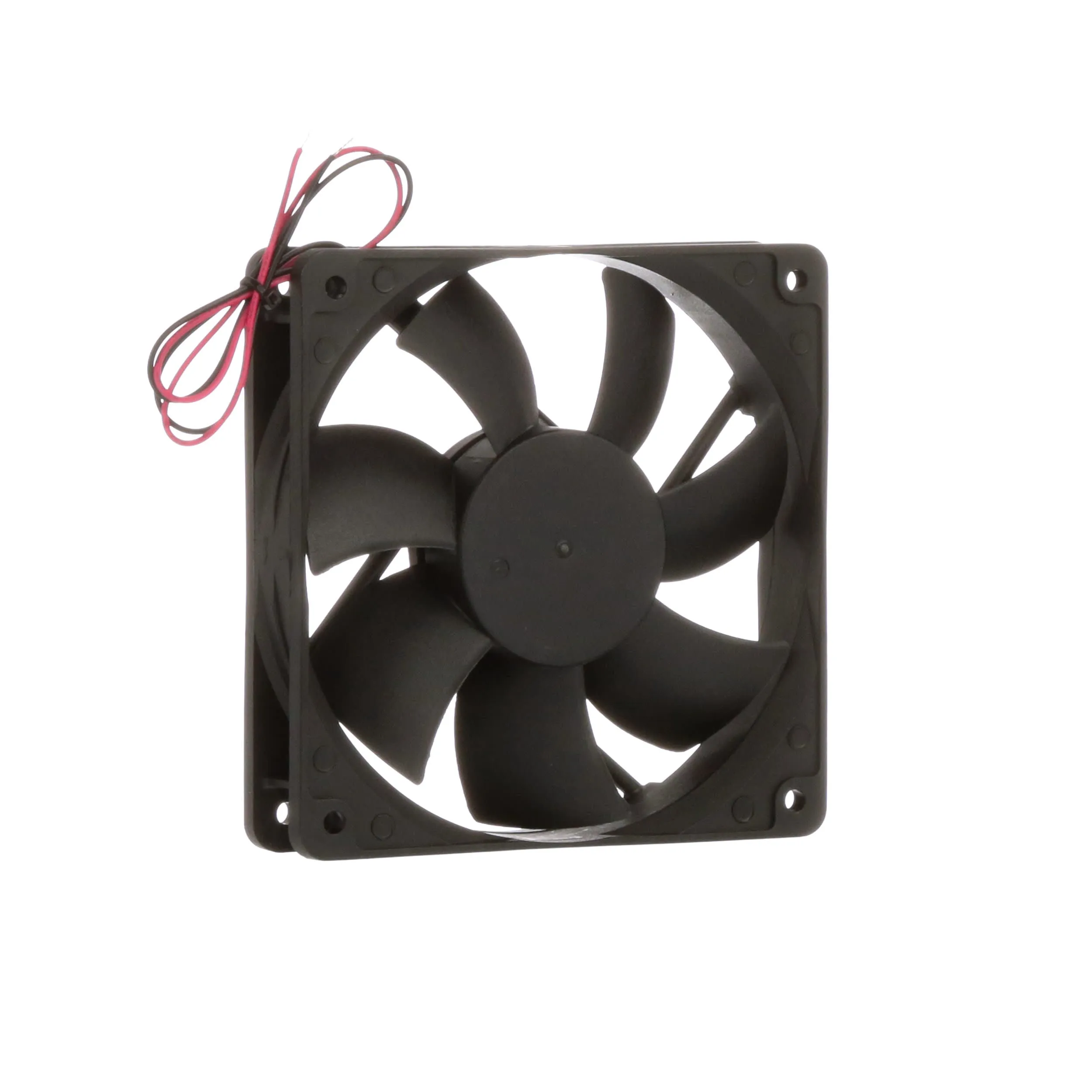

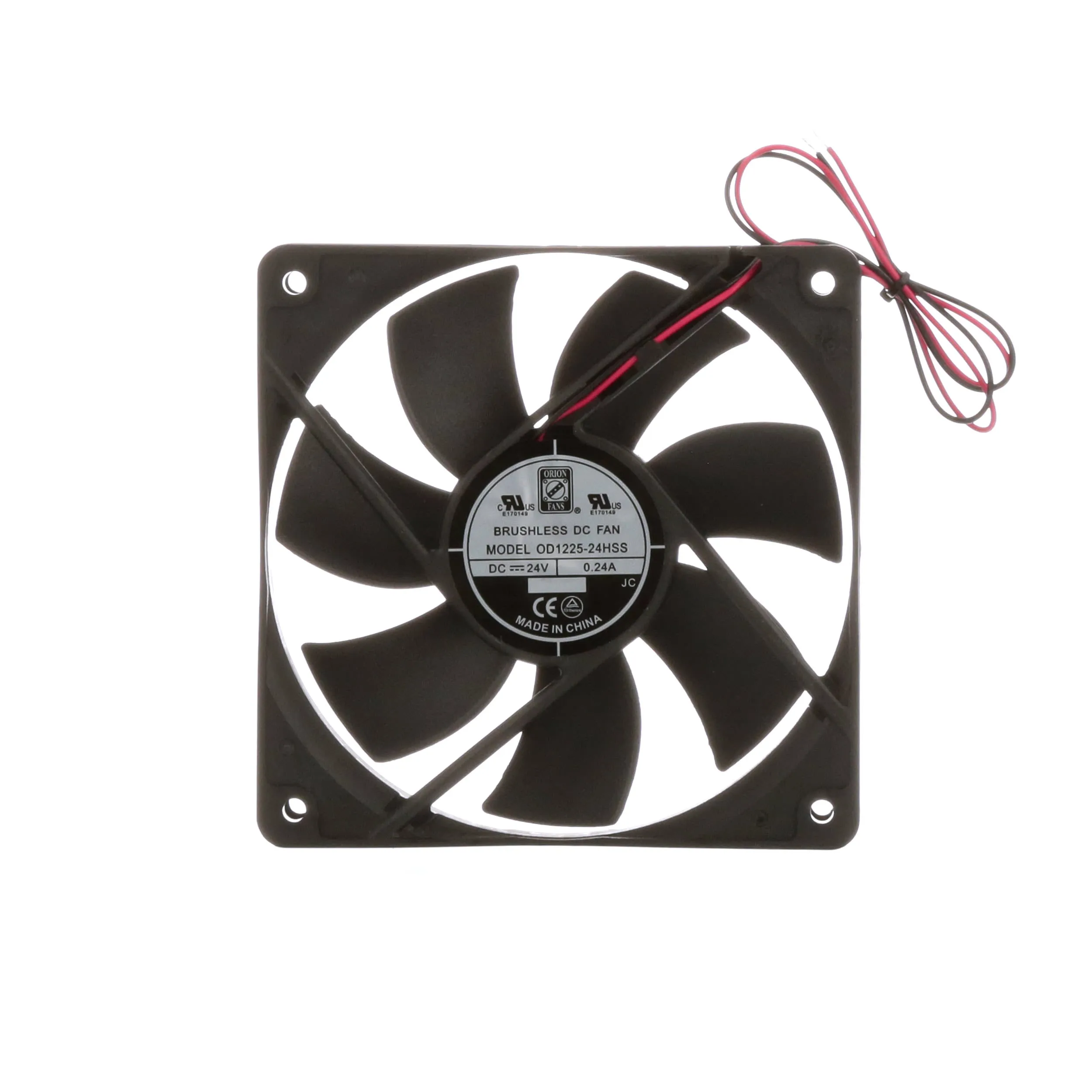

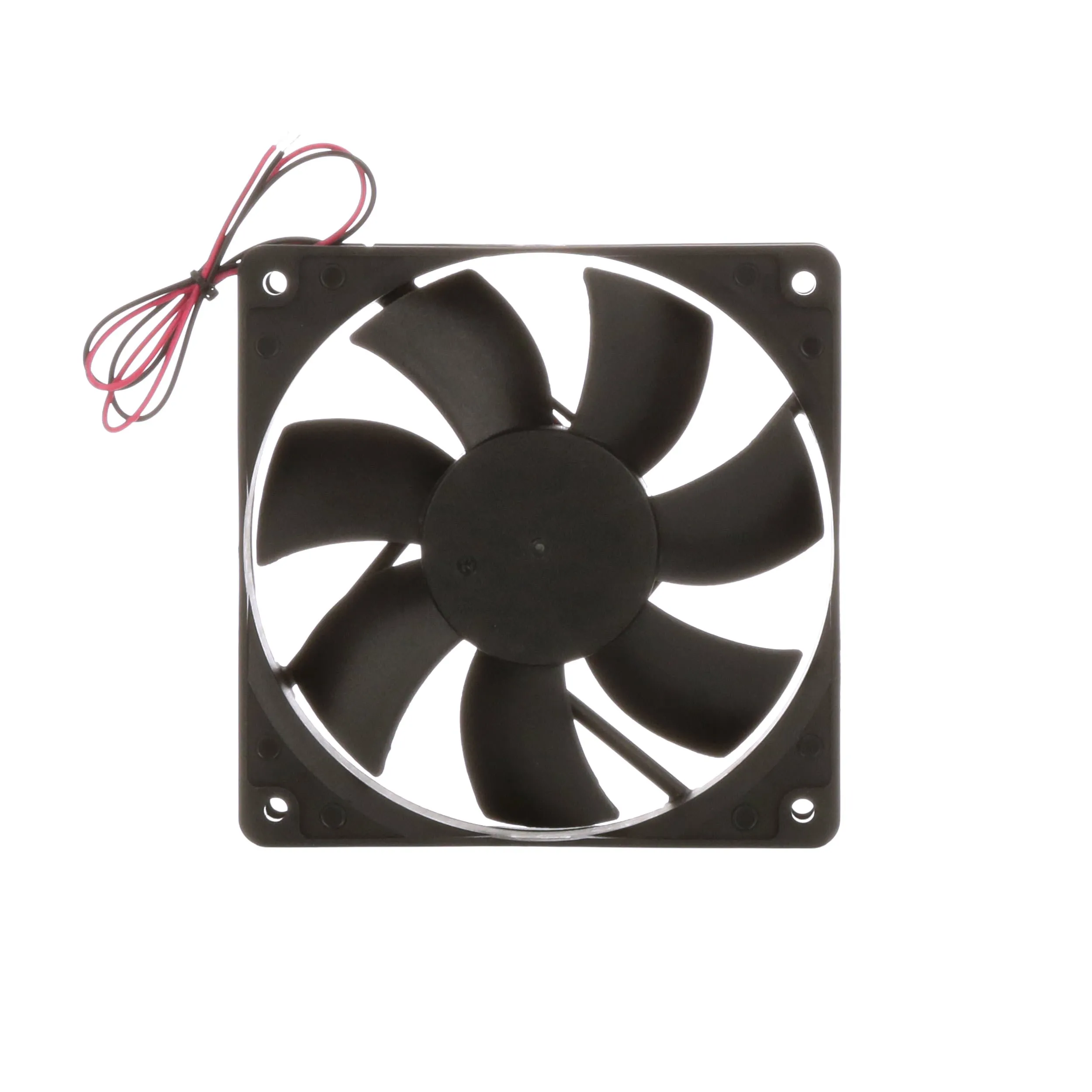

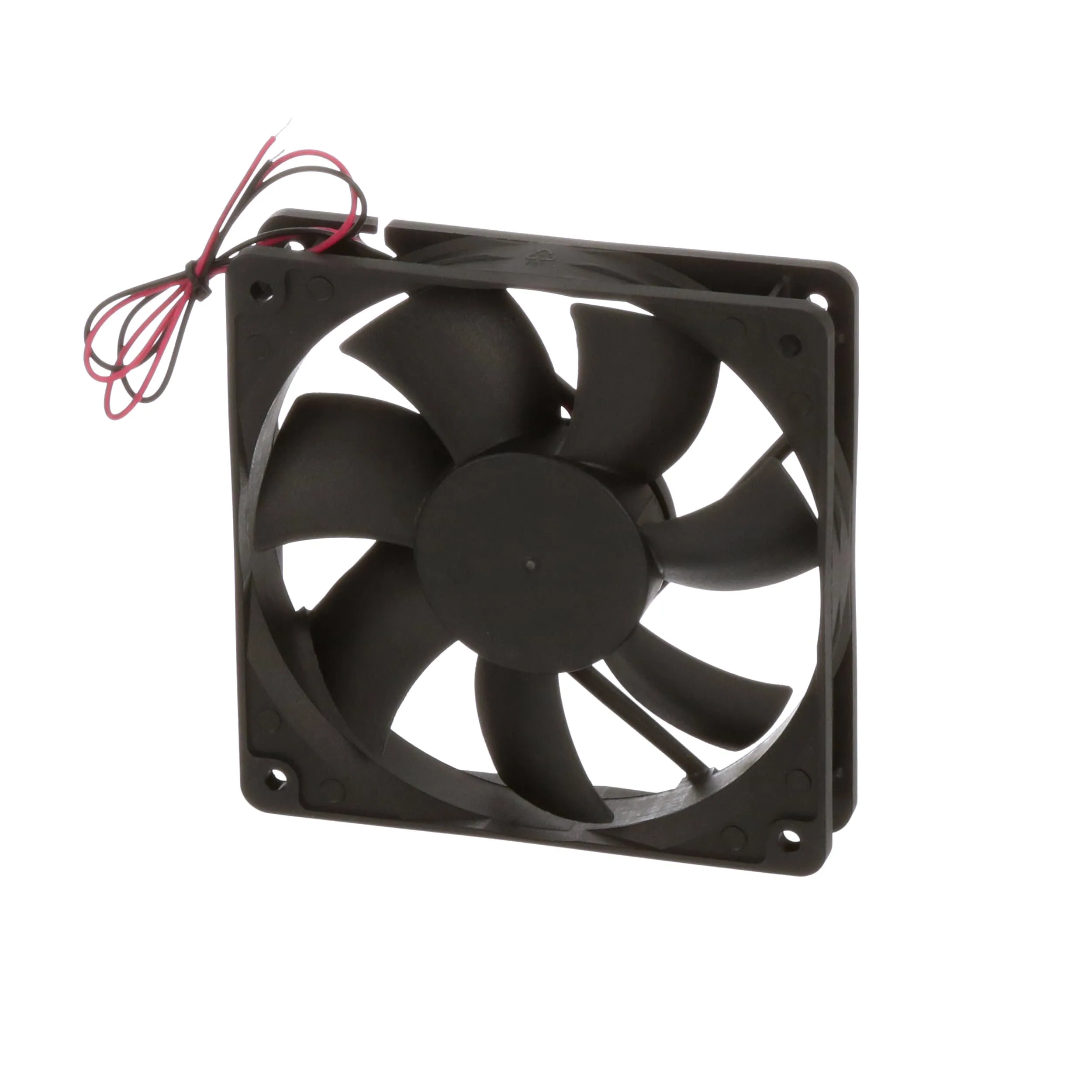

RS DC Sealed Sleeve Axial Fans
RS DC sealed sleeve axial fans provide a general purpose, compact and reliable solution to a variety of applications. The sealed sleeve technology provides a cost-effective alternative to ball bearing fans, with a longer life expectancy than standard sleeve bearing fans.
