(item no. 4575032)

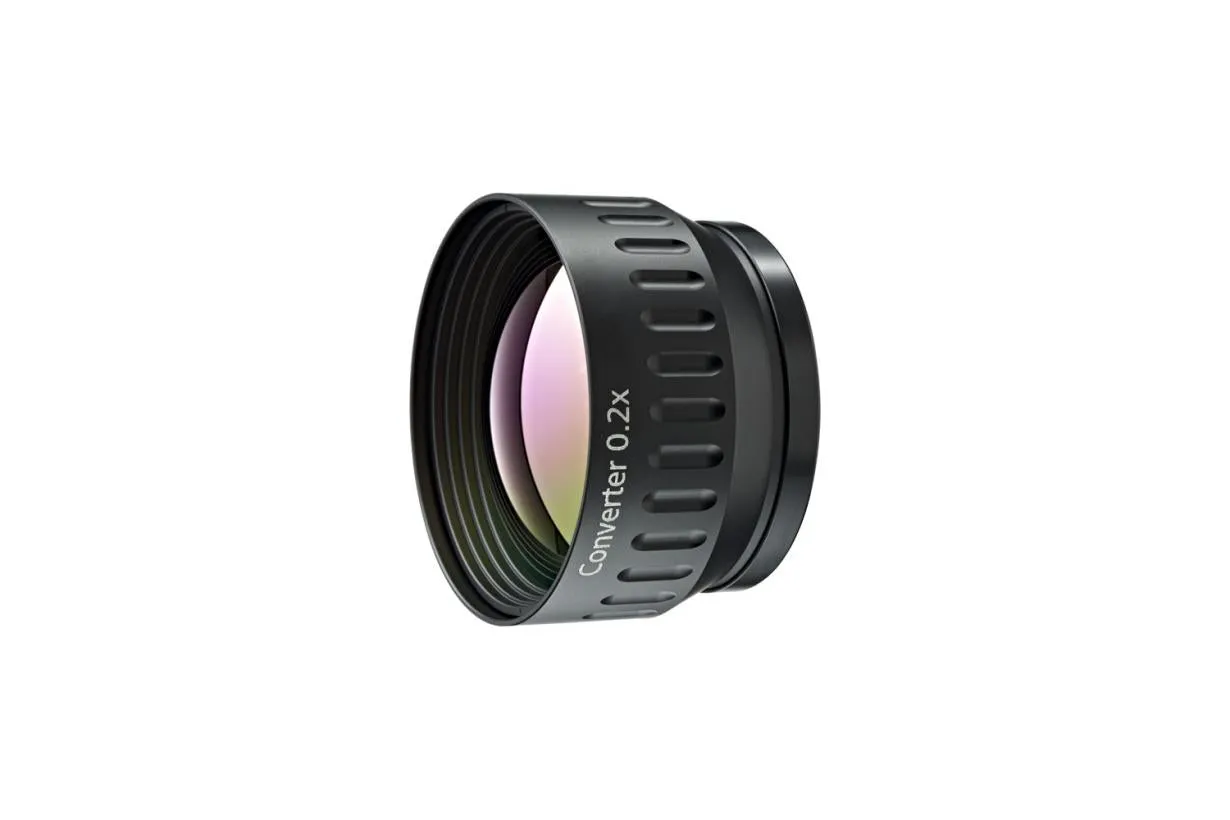

Close up macro lens (0.2x) for inspection and analysis in research and development applications – compatible with TiX1000, TiX660 and TiX640 models.
Applications: Research and development, extremely small targets, PCB boards (heat dissipation), semiconductor substrates, and seals.
Specifications: Macro 1 Infrared Lens
| General Characteristics | |
| Lens description | Close-up 0.2x |
| Focal distance | 30 mm |
| Focus | 137.4 mm |
| 1024 x 768 | |
| iFOV (°) | 85.5 x 63.2 mRad |
| Resolution | 81 µm |
| 640 x 480 | |
| iFOV (°) | 78.1 x 57.9 mRad |
| Resolution | 119 µm |
Applications: Research and development, extremely small targets, PCB boards (heat dissipation), semiconductor substrates, and seals.
Compatible with TiX1000, TiX660 and TiX640 infrared cameras
