| Product Attribute | Attribute Value |
|---|---|
| Air Flow | 340 CFM (9628 L/Min.) |
| Approximate Thickness | 4.4 In. (112 mm) |
| Bearing Type | Ball |
| Configuration | Square |
| Current Rating | 0.53 A |
| Dimensions | 6.91 x 6.91 x 4.4 In. (175.5 x 174.5 x 111.8 mm) |
| Fan Type | AC |
| Frequency | 50;60 Hz |
| Maximum Operating Temperature | 70 C |
| Minimum Operating Temperature | -10 C |
| Noise Level | 61.6/65.4 dBA |
| Power Rating | 56 W |
| Primary Type | Fan |
| Rotation | CW |
| Series | |
| Size | 6.91 x 4.4 (175.5 x 111.8) In. (mm) |
| Size, Approximate | 6.9 x 6.9 In. (176 x 175 mm) |
| Speed | 3480 RPM |
| Termination | Terminals |
| Type | Square |
| Voltage Rating | 115 VAC |
Overview

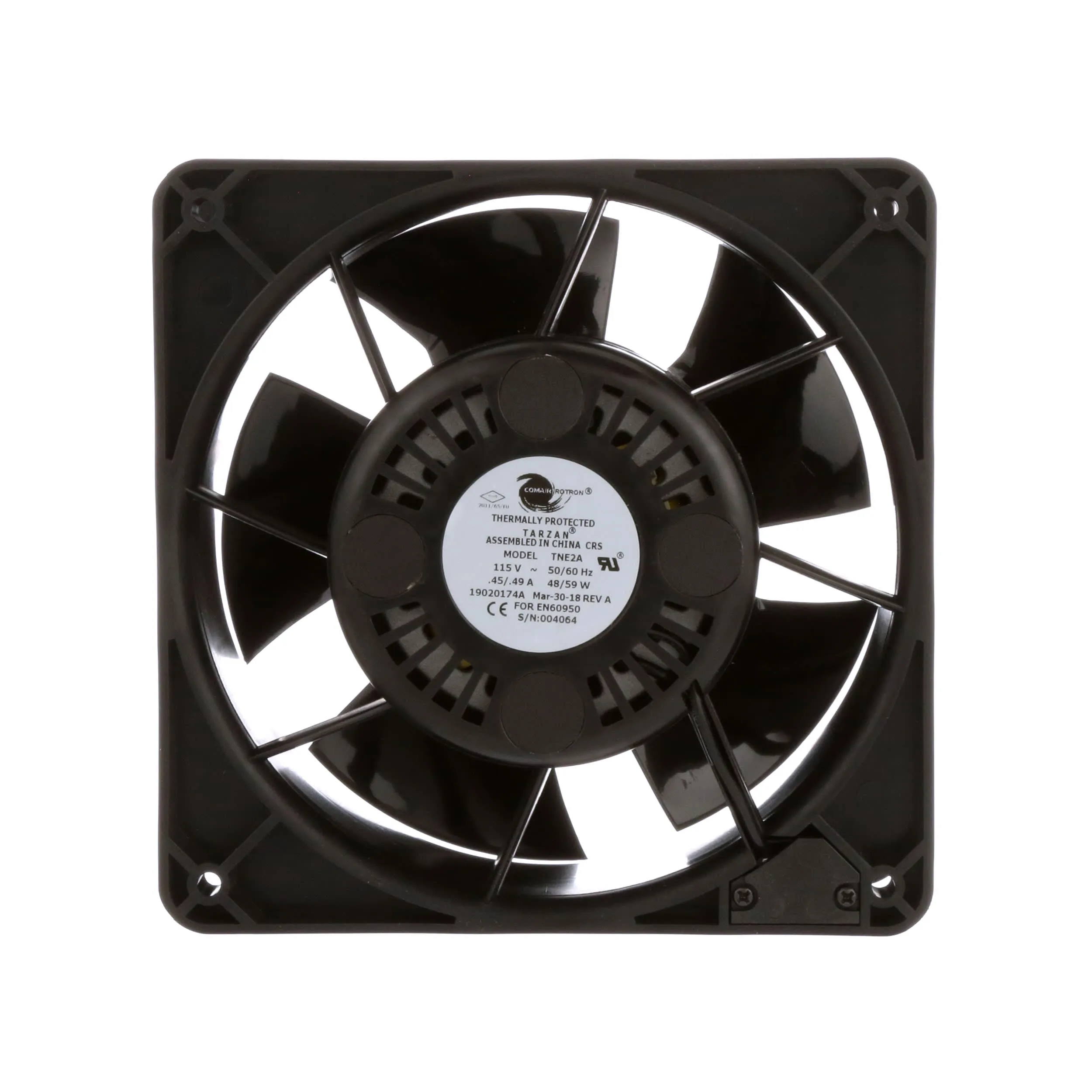

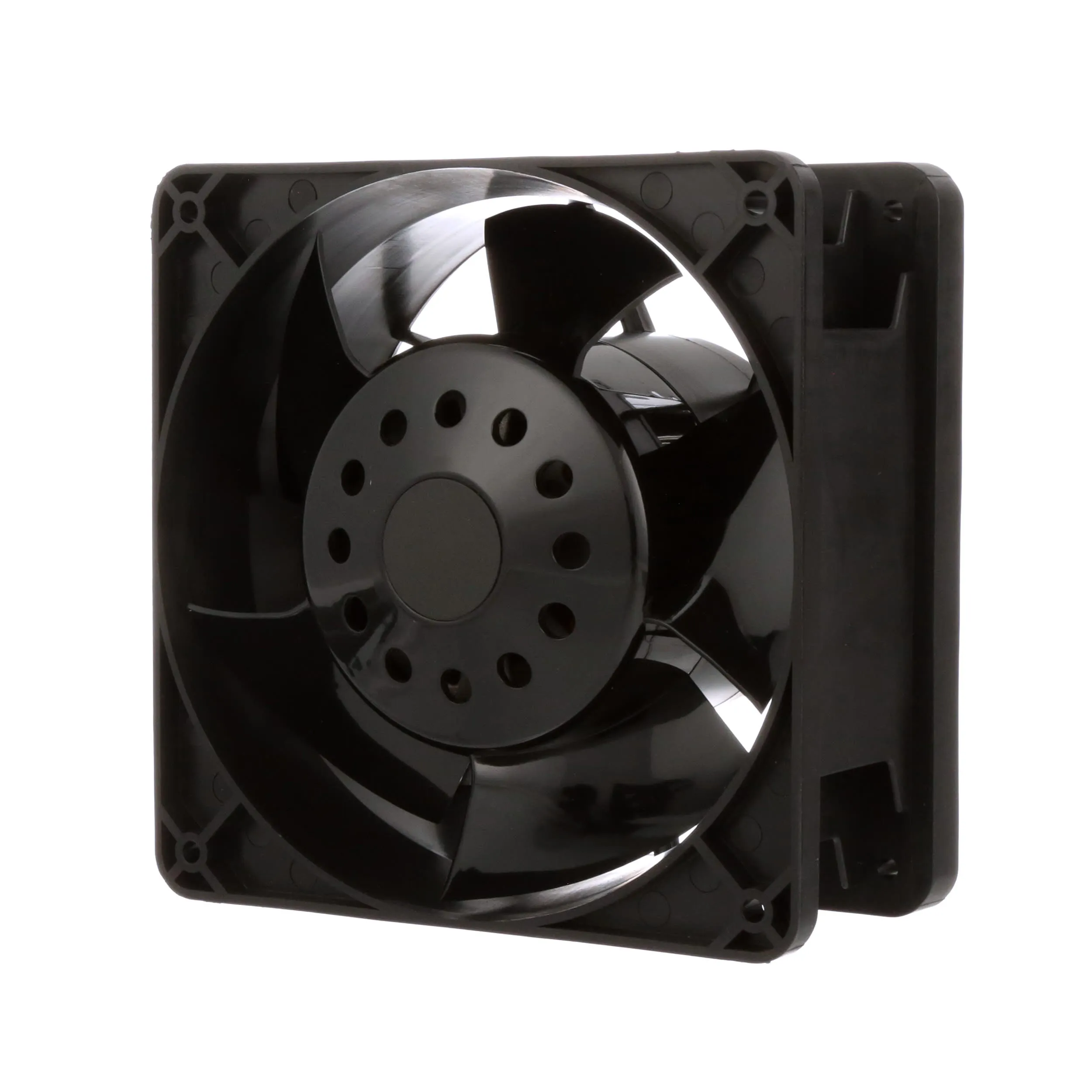

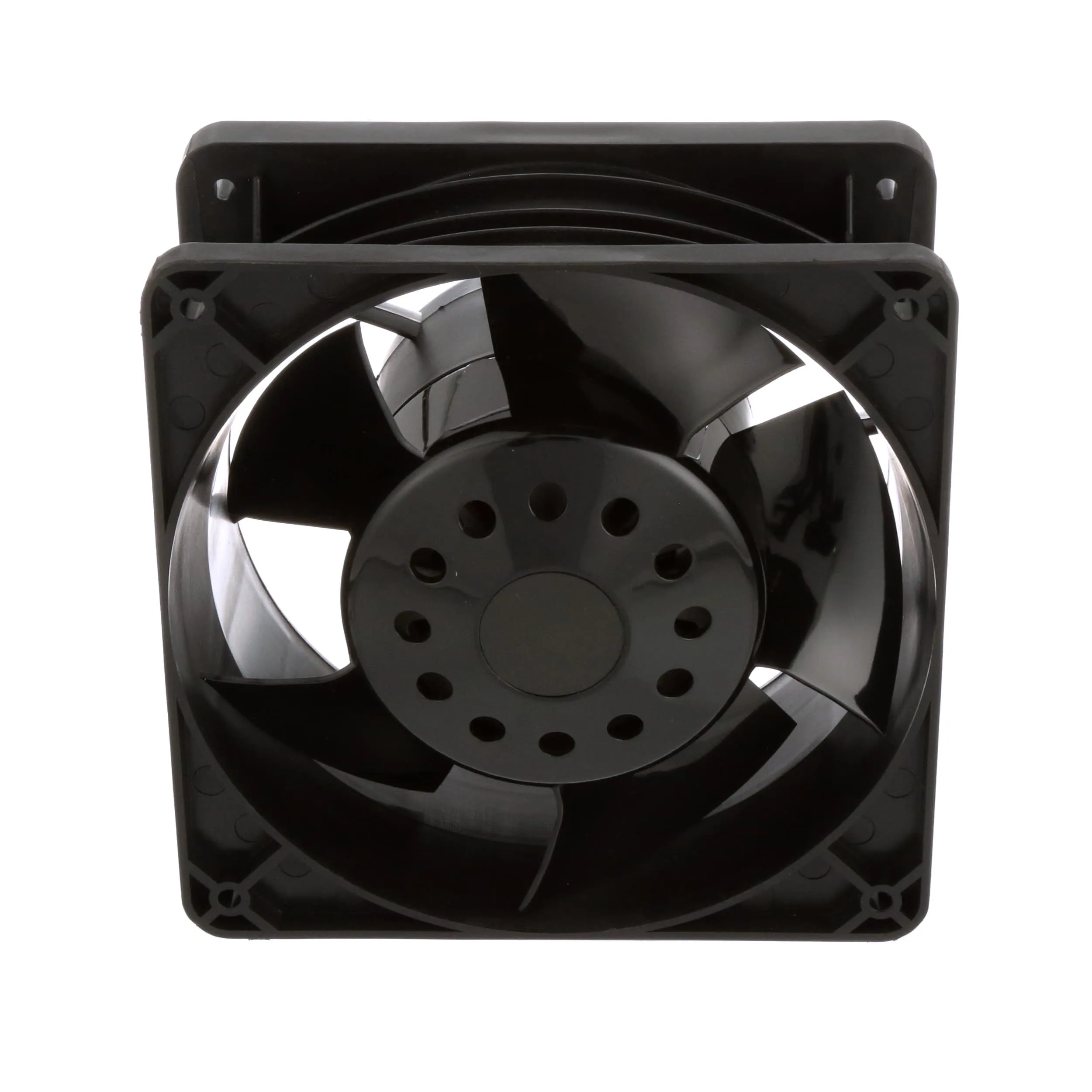

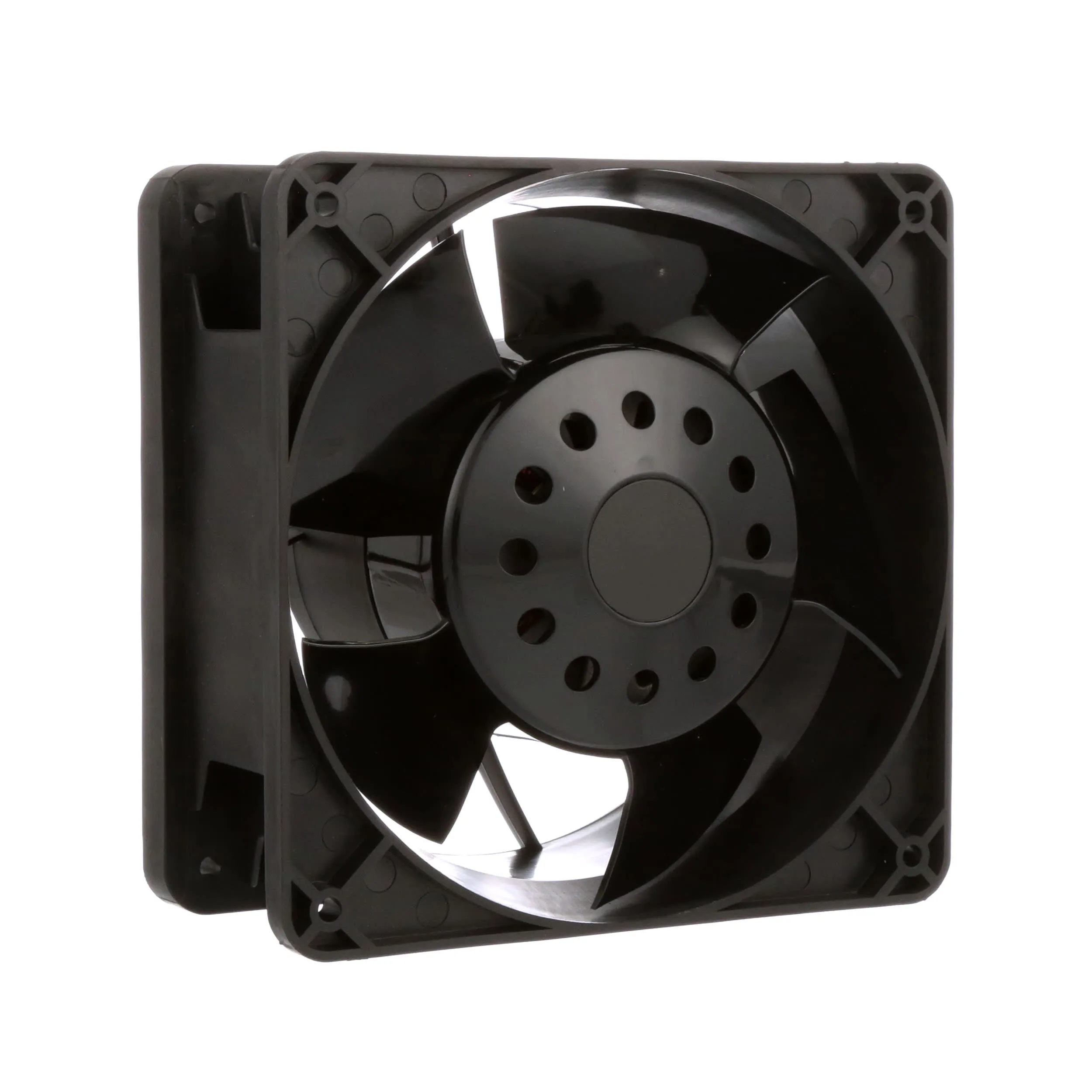

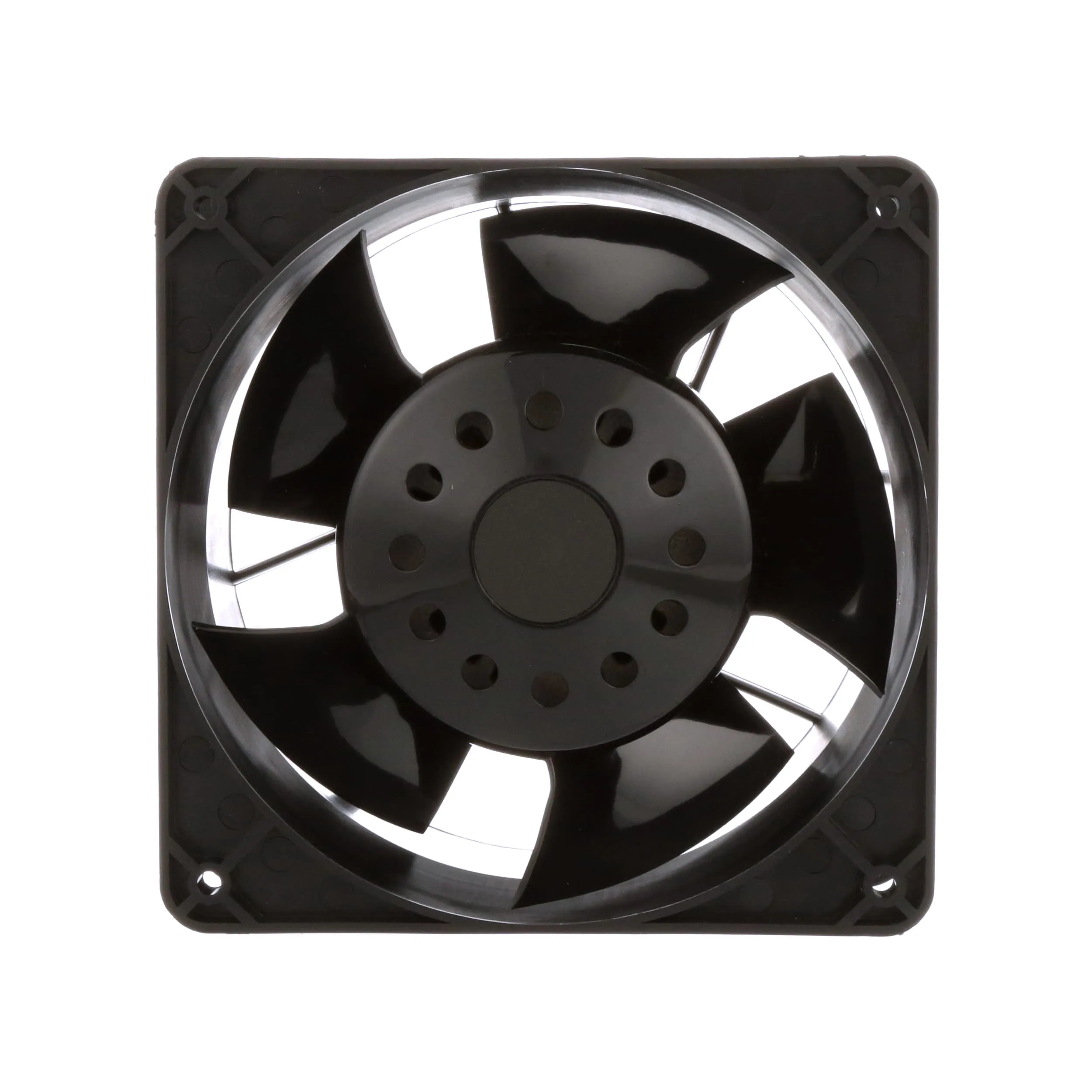

Comair Rotron AC Ball Bearing Axial Fans
Comair Rotron AC ball bearing axial fans are available in a wide range of sizes, voltages and airflow ratings, ensuring that the correct fan will be available for any specific cooling specification. Comair Rotron AC fans feature outstanding airflow performance in high pressure systems and all include a permanent split capacitor motor. An extended ball bearing life ensures fault-free use for a significant period of time and ensures Comair Rotron AC fans provide a flexible and dependable cooling solution.
Outstanding airflow performance in high pressure systems
Extended bearing life
Black construction
Storage temperature: -40 to 85C
